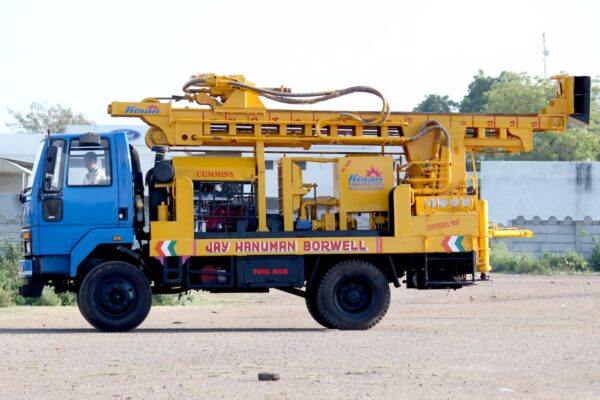

KE490MTRMANUAL

Description

MAST:

Sturdy structural RHS Tubular Mast of Electrically welded construction, main members made out of heavy duty sq.80 seamless steel tubes reinforced with suitable cross members made out of heavy-duty sq.65 seamless tubes, So that it is strong enough to withstand the high drilling loads. Mast shall be raised and lowered by One hydraulic cylinders with safety check valve, operated from driller’s platform. Mast shall have clear working space and height to handle the drill string.

1. Mast length – 10000 mm 393.7 Inch
2. Raising & Lowering – With One Hydraulic cylinder
3. Rotary Head travel – 7000 mm 275.5 Inch
4. Centraliser opening – 406 mm 16
5. Hook Load Capacity – 50 Tons

ROTARY HEAD:

Heavy duty twin Hydraulic motor, Spur gear driven with ratio of 1:3 reduction, the gears have capacity to with stand high compressive stress and tooth to be ground to a quality of 4, oil bath type. The gearbox has combination of taper roller and ball bearings to withstand high impact and sudden shock loads. Top head rotation unit having infinitely variable speed (0 to 100 RPM) will be provided. This unit travels on the Mast and is of sturdy construction to absorb sudden shock loads generally encountered during Drilling Operations.

1. Max. Speed – 0 – 100 RPM
2. Max. Torque – 600 Kg.f-m
3. Drive Motor model – OMT – 315/Customer Require
4. Motor Quantity – 2 No.’s

Top head rotation unit is provided with saver sub to protect spindle and drill pipe threads from damages.

FEED SYSTEM (Optional):

Feed system is provided with adequate travel for handling drill pipes and Casing pipes up to 6 meters long. A suitable hydraulic cylinder with chain and sprocket/wire rope and pulley arrangement actuates the feed and hoist. The feed system has the following capabilities:

1. Feed cylinder size – Ø125 x Ø100 x 2350 mm
2. Pull back/up Capacity – 19,000 Kgf
3. Pull down Capacity – 9,500 Kgf
4. Max. Pull back/up Speed – 32 mt. /min.
5. Hydraulic Cylinder Qty. – 02 No.’s

The Feed system will be incorporated with Hold back arrangement to control and limit weight on bit, rapid and slow feed arrangement to suit the variable ground conditions.

HYDRAULIC SYSTEM:

The hydraulic system is designed for fuel efficient and high productive capacity. All hydraulic elements like Pumps, Motors, Valves, Suction filter, Return line filter and cylinders shall be of adequate capacities and of reputed makes. Variable displacement Piston pump with Proportional valves are used for Rotation and Feed (Fast and micro feed), mud pump and divert valves are used for auxiliary drives like mast raising, rig leveling, Break-out wrench, Hydraulic oil cooler etc., All hoses shall withstand to High pressure and high temperature. The hydraulic oil shall be filtered during Suction and Return lines. Max. Operating pressure – 150 kg/cm2 Hydraulic Tank capacity – 700 Lt. Filtration (Nom.) – Return line – 10/25 microns Hydraulic Oil Cooler – Fin type Oil to Air The entire Rig is designed to operate at high temperature encountered in the normal weather conditions and is robust and extremely rugged.

AUXILIARY SYSTEM:

WATER INJECTION PUMP The drill rig will be provided with hydraulically operated triplex water Injection plunger pump, for injecting water/ foam with necessary piping and flow control valve. Max. Flow – 80 lpm Max. Pressure – 40 kg/cm2

STABILIZERS JACKS:

System consists of four hydraulic leveling jacks with ‘Reverse flow restricted valves to ensure safe operation. Two numbers are at rear of the rig controlled by two separate valves and two jacks at the front of the rig controlled by a single valve. Cylinder bore diameter – 125 mm 4.9 Inch Stroke – 610 mm 24 Inch No. of Jacks – 4 No.

BREAKOUT WRENCH:

The Drill Rig is equipped with hydraulic breakout wrench for tightening and loosening of drill pipes and the hammer. Cylinder bore diameter – 80 mm 3.1 Inch Stroke – 300 mm 12 Inch

AUXILIARY WINCH:

Hydraulically operated auxiliary winch is mounted on mast to handle the casing pipes, drill pipes and other handling tools. Bare Drum – pull – 800 kgf. Max. Speed – 40 m/min.

CONTROL PANEL:

WAll necessary control and monitoring valves and gauges are installed at control panel located nearer to drilling point for driller convenience

AIR COMPRESSOR MOUNTING:

Air Compressor shall be mounted on a Same Truck with Hydraulic package arrangement as required and Four Ø100 Bore stabilizers. AIR COMPRESSOR: Capacity – 1100 CFM x 300 PSI Make – ELGI / Equivalent AIR LINE LUBRICATOR: Capacity – 1100 CFM @ 300 PSI x 13.5 Liters Note:
In view of continuous R & D and Product Improvement programme all specifications, features etc., are subject to amendments without prior notice.
KE- Drilling Rigs can be supplied in custom-built models in various Configurations, Mounting features to suit all special requirements and Technical specifications can be offered accordingly
